Leviton

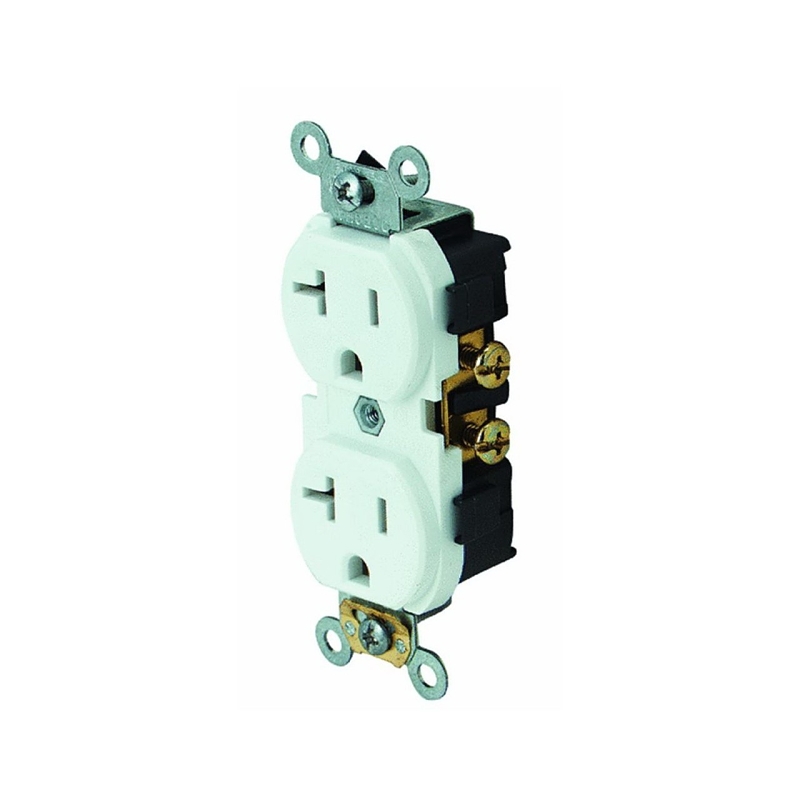

Leviton S02-0CR20-0WS Duplex Receptacle, Thermoplastic, White, 2-Pole, 20 A, 125 V, Side Wiring, 60 Hz
- Color: White
- Current Rating: 20 A
- Dimensions: 4 in L x 1.56 in W x 1.09 in D
- Frequency Rating: 60 Hz
- Material: Thermoplastic
- Model #: S02-0CR20-0WS
- UPC #: 078477070628
- SKU: 7018567
Your shopping list will be used for pickup in-store
Product Details
Leviton offers a large selection of 15 A and 20 A commercial spec grade receptacles, including Decora® brand devices available in a wide variety of colors, wiring options and other features. Leviton-Foots commercial receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long-lasting service life and are a cost-saving alternative to the industrial devices.Item Specifications
| Color | White |
|---|---|
| Current Rating | 20 A |
| Dimensions | 4 in L x 1.56 in W x 1.09 in D |
| Frequency Rating | 60 Hz |
| Material | Thermoplastic |
| Mounting Type | Wall |
| NEMA Configuration | 5-20R |
| Number of Poles | 2 |
|---|---|
| Number Of Wires | 3 |
| Operating Temperature | -40 to 60 deg C |
| Voltage Rating | 125 V |
| Wattage Rating | 1 hp |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Side |
